Our Projects

GRP BOAT

This GRP vessel is one of the largest of its kind in the Gulf region, constructed by Salem Matter Boat Builder in Sharjah. All onboard equipment, as well as the interior furnishings and fittings, were expertly supplied and installed by Alpha Marine Equipment in Dubai in the year 2000.

SEA AMBULANCE

This high-speed sea ambulance features a mono-hull design with a durable composite structure, purpose-built for rapid response and emergency medical support operations.

Engineered for longevity, the vessel is designed to operate for up to 20 years in the demanding climate conditions of the Arabian Gulf and the Sea of Oman. It performs efficiently in sea conditions up to Force 3 and remains seaworthy in conditions up to Force 4.

For enhanced rescue operations, the vessel is equipped with a crane and windlass system to safely recover injured individuals from the water. To further improve safety and buoyancy, the hull is reinforced with foam filling that offers zero water absorption, helping maintain vessel stability even in challenging situations (excluding extreme incidents such as major collisions or fire caused by misuse).

The onboard medical layout accommodates two stretcher patients—one meeting Type A standards and the other Type B—along with the necessary rescue and medical equipment. Additionally, seating is available for two ambulatory patients within the cabin.

Overall, the vessel is designed to deliver reliability, safety, and efficiency in critical maritime rescue missions.

MAIN CHARACTERISTICS

L.O.A. : 14.2 (m) 46.6 (ft)
Hull length: 12.9 (m) __________ 42.3 (ft)
Beam : 3.85 (m) __________ 12.6 (ft)
Height : _______4.65 (m) without Arch _______15.25 (ft) without foldable arch
Draught Static : 0.70 (m) 2.30 (ft)
Draught at Speed: 0.60 (m) 1.95 (ft)
Displacement (full) : 11000 (kg) 24250 (lb)
Drives: INDY STERN DRIVE
Fuel Capacity (gasoline): 2100 (lt) 461.9 (gallon U
Fuel Capacity (diesel) : 200 (lt) 44.0 (gallon UK)
Water Capacity : 400 (lt) 88.0 (gallon UK)
Holding Tank Capacity : 300 (lt) 66.2 (gallon UK)
Max speed: (Full load with ILMOR MV10-725 HP) 44 (knots)
Range at 22 knots ____250(nm)

INTERIOR MEDICAL EQUIPMENTS

Medical Equipments (Standard A & B)
Water Dispenser, Crane
Fixed Vacuum Aspirator
Body Bags, Emergency Birth Kit
Scaled Infusion Device, Oxygen Mask and nasal catheter (set)
Injector Pump, Thermometer
Emergency Stretcher, Emergency Basket
Euro Cargo Stretcher, Portable Oxygen Bottle
Serum Set, butterfly set, Thorax drainage set
Heat insulated vessel, Hospital Bed
Seat for Doctor, KED Rescue Vest
Fixed Oxygen Bottle and Plug, Burn Set (Aluminum burn blanket, burn gauze and compresses or burn gel)
Pericardial function kit, Injectors in different size
Serum Hanger,

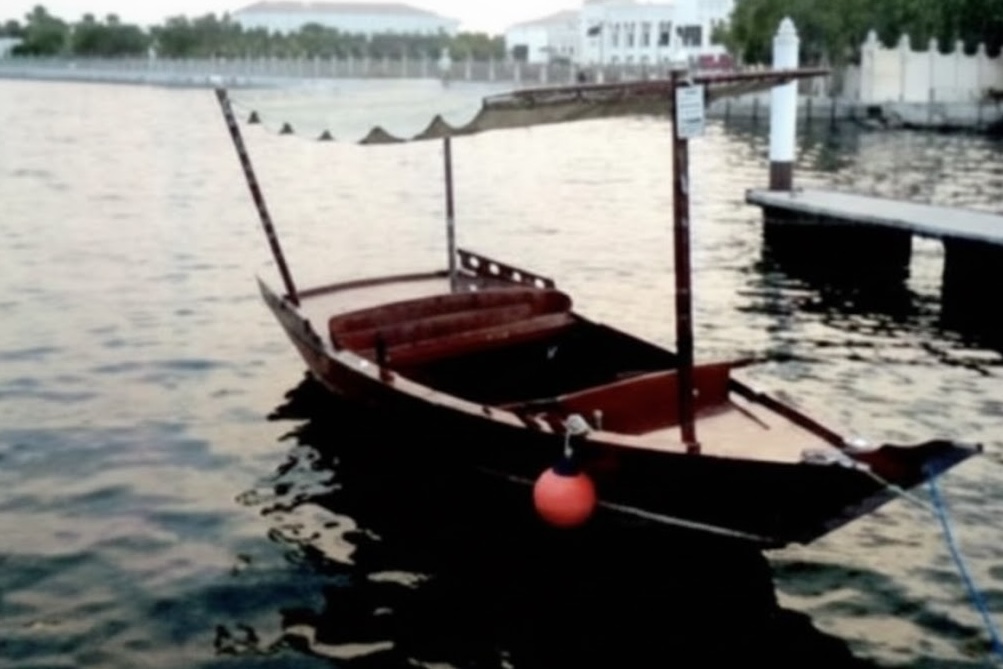

RTA ABRA

The water taxis (Abras) were manufactured by Alpha Marine for the Roads and Transport Authority (RTA). These vessels are equipped with Torqeedo electric propulsion systems, offering an eco-friendly solution that operates without harmful emissions, ensuring minimal impact on the marine environment.
